SAKO SUNIN 15 kW three-phase hybrid inverter 48 V, IP66

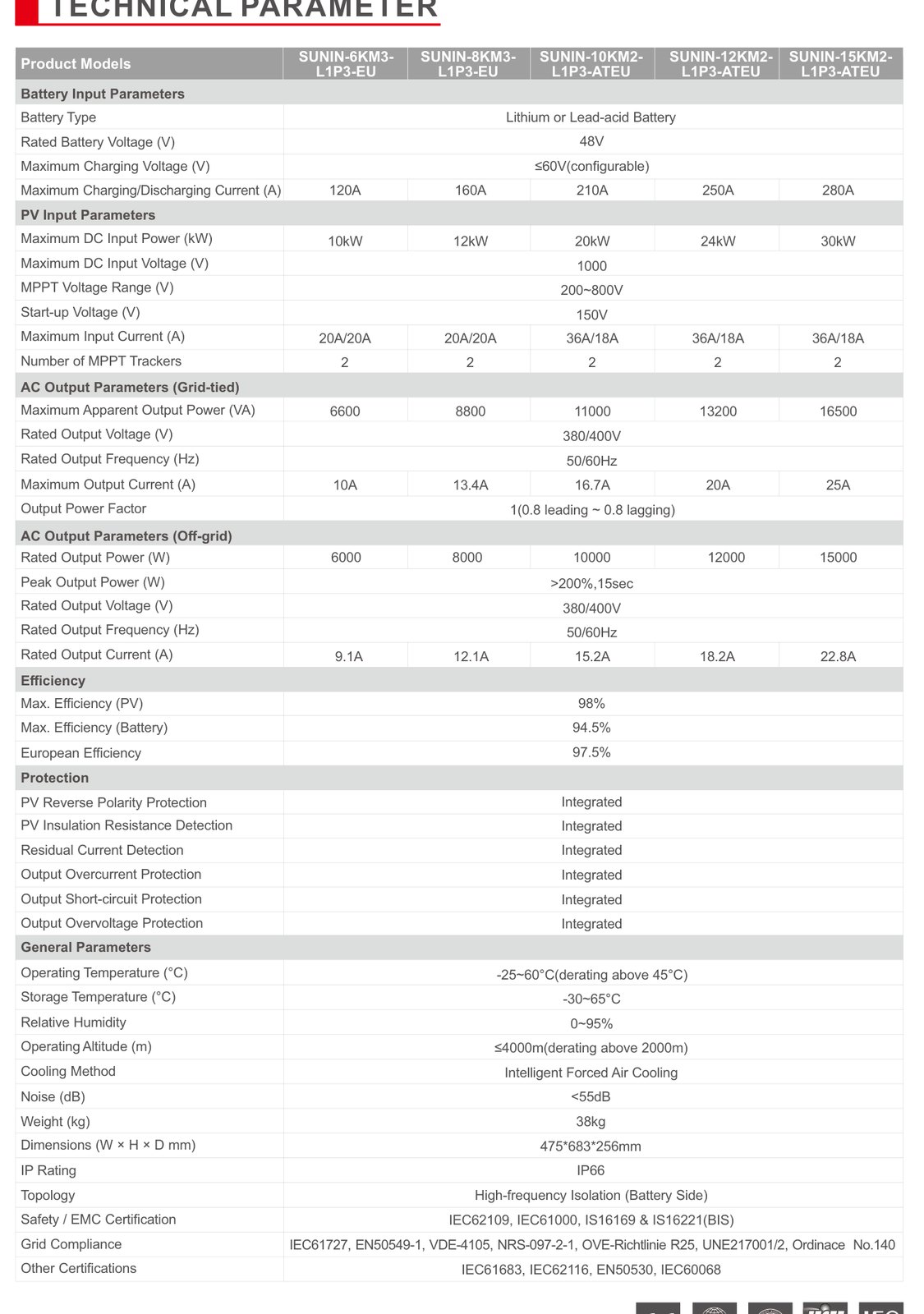

Specifications

Model

SUNIN-15KM2-L1P3-ATEU

Type

Hybrid inverter, three-phase

Rated power (off-grid)

15 kW

Peak power

>200%, 15 s

Max PV input power

30 kW

Max PV voltage

1000 V

MPPT range

200–800 V

Start-up voltage

150 V

MPPT trackers

2

Max PV input current

36 A / 18 A

Battery

48 V, lithium or lead-acid

Battery charge/discharge current

up to 280 A

Grid output

16500 VA, 380/400 V, 50/60 Hz

Max grid output current

25 A

Off-grid output current

22.8 A

Efficiency (max / EU)

98% / 97.5%

Parallel operation

up to 6 units

Protection

IP66, PV reverse polarity, short-circuit, overcurrent, overvoltage, RCD

Cooling

forced air, noise <55 dB

Dimensions (W×H×D)

475×683×256 mm

Net weight

38.0 kg

Communication

Wi-Fi, BMS CAN/RS485

Certifications

IEC62109, IEC61000, IEC61727, EN50549-1, VDE-4105

Description

SAKO SUNIN-15KM2-L1P3-ATEU three-phase 15 kW hybrid inverter for home and business solar systems. Works with the grid, PV panels and 48 V batteries (lithium or lead-acid), exports surplus to the grid and switches to off-grid backup during outages. PV input up to 30 kW, 2 MPPT trackers, battery charge/discharge current up to 280 A. IP66 enclosure for outdoor installation. Up to 6 units in parallel, 6 charging time slots, diesel generator support and Wi-Fi monitoring. Up to 98% efficiency. Turnkey supply from China.
