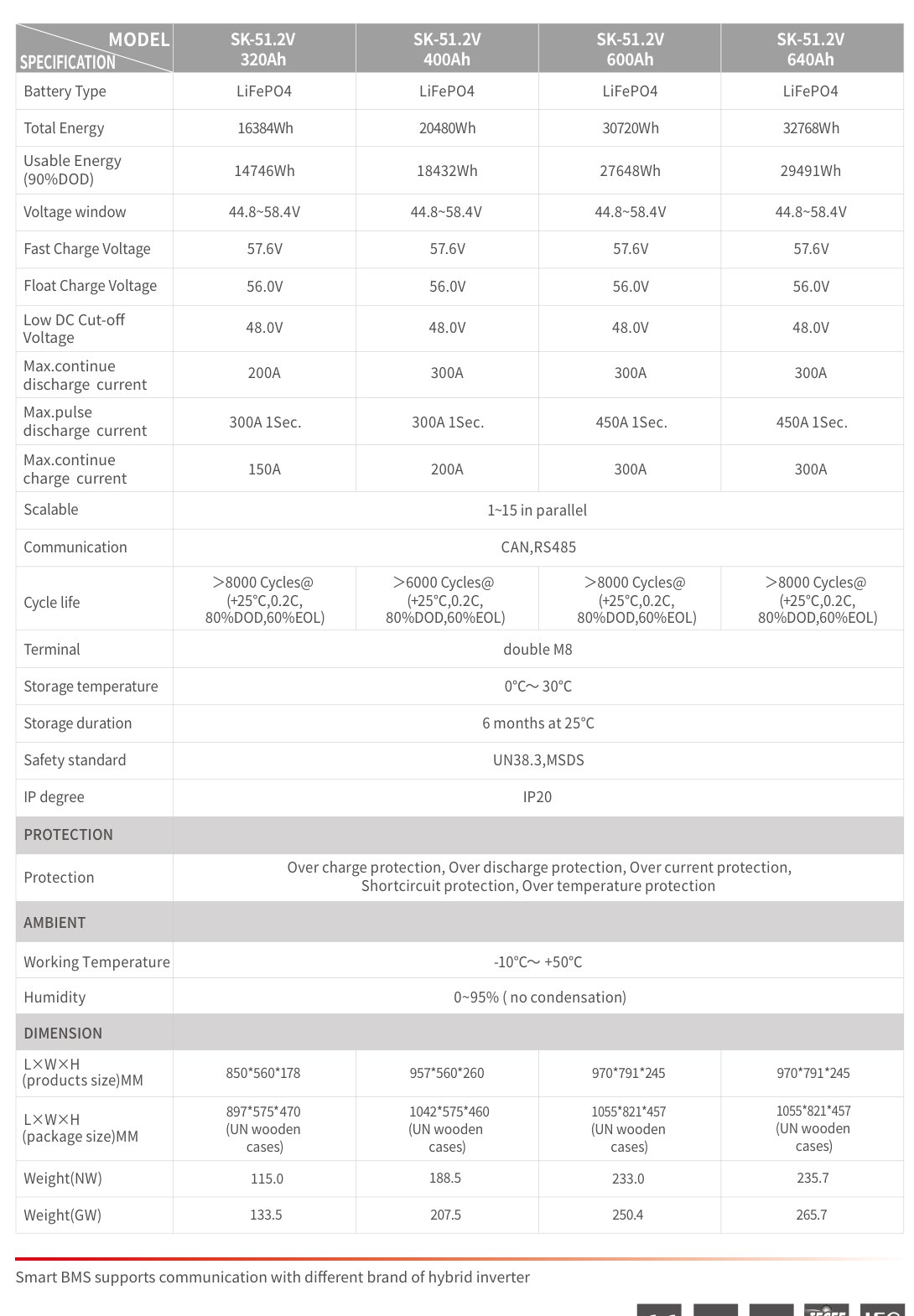

Specifications
ModelLi-Sun Pro SK-51.2V 320Ah
ChemistryLiFePO4, 16 cells 16S1P
Nominal voltage51.2 V
Capacity320 Ah
Energy16,38 kWh
Usable energy (90% DoD)14,7 kWh
Voltage window44.8–58.4 V
Charge / float voltage57.6 V / 56.0 V
Max charge current150 A
Cycle life>8000 cycles (25 °C, 0.2C, 80% DoD)
Parallelup to 15 units
CommunicationCAN, RS485, Wi-Fi/Bluetooth
Protectionovercharge, over-discharge, overcurrent, short-circuit, over-temperature
IP ratingIP20 (indoor)
Operating temperature−10…+50 °C
Dimensions850×560×178 mm
Net weight116.7 kg
CertificationsUN38.3 (report TSZ26DL082A27-01), MSDS
TransportUN3480, class 9, PI965
Warranty5 years
Description

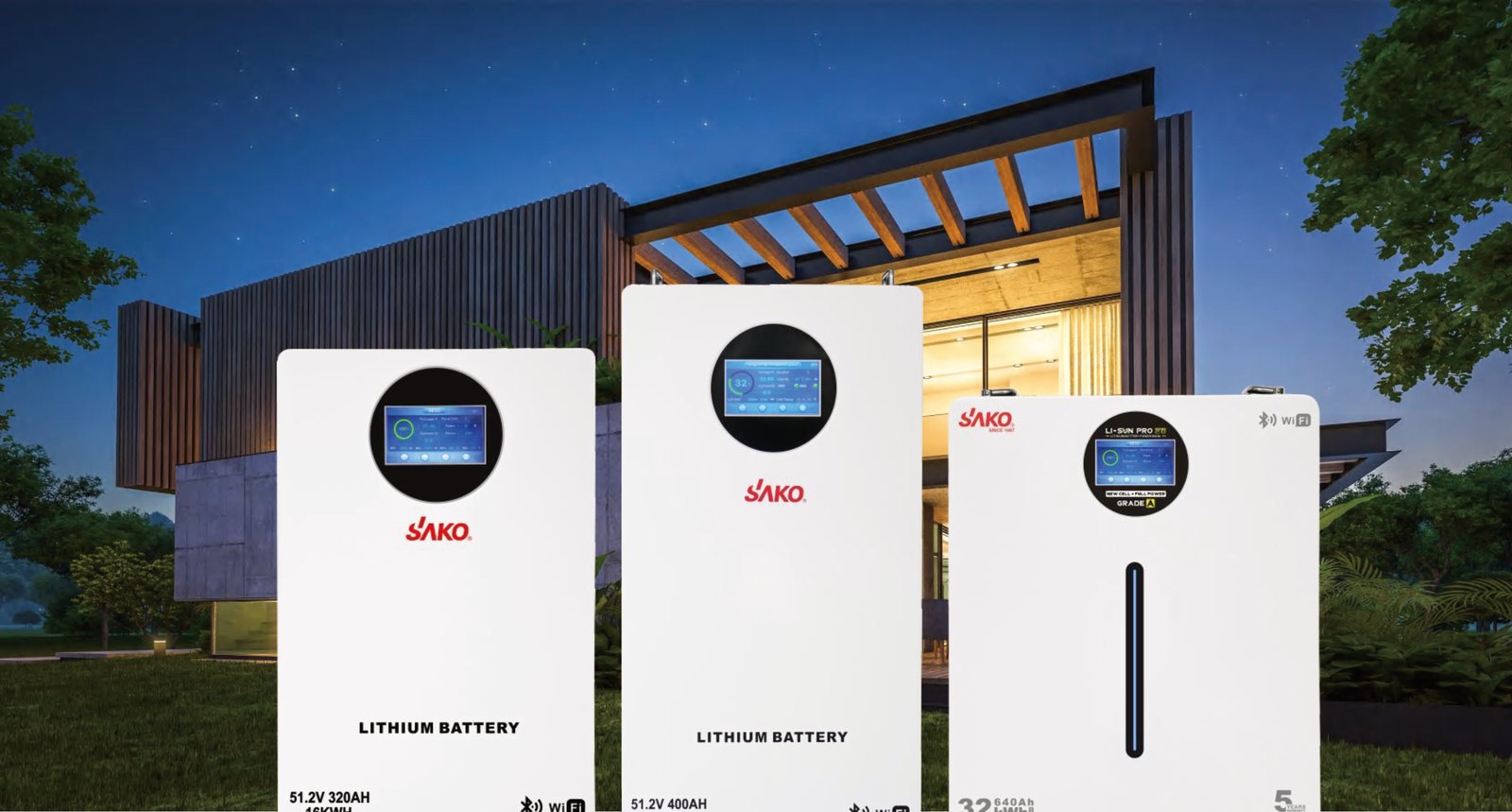

SAKO Li-Sun Pro 51.2 V 320 Ah lithium iron phosphate battery — 16,38 kWh (14,7 kWh usable at 90% DoD). Brand-new grade A cells, 8000+ cycles, smart BMS with Wi-Fi/Bluetooth and touch screen. Compatible with 48 V hybrid inverters (SAKO, Growatt, Deye, MUST, Victron and more via CAN/RS485), up to 15 units in parallel. Wall or floor mounting. Protection against overcharge, over-discharge, short-circuit and overheating. UN38.3 and MSDS certified for transport. Turnkey supply from China.
